Description

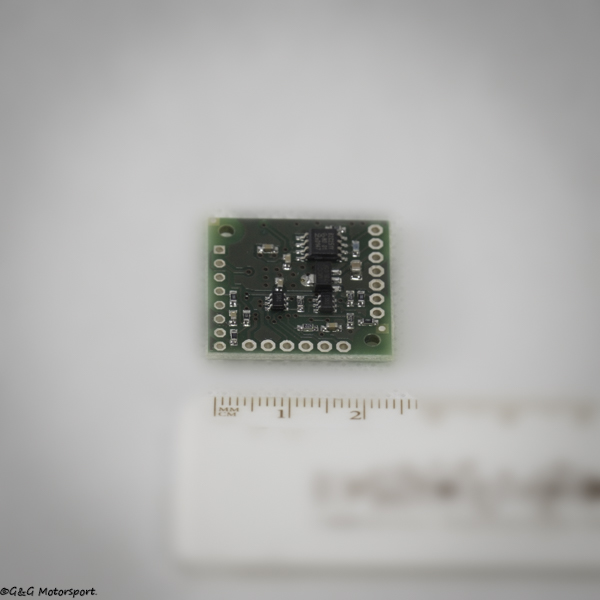

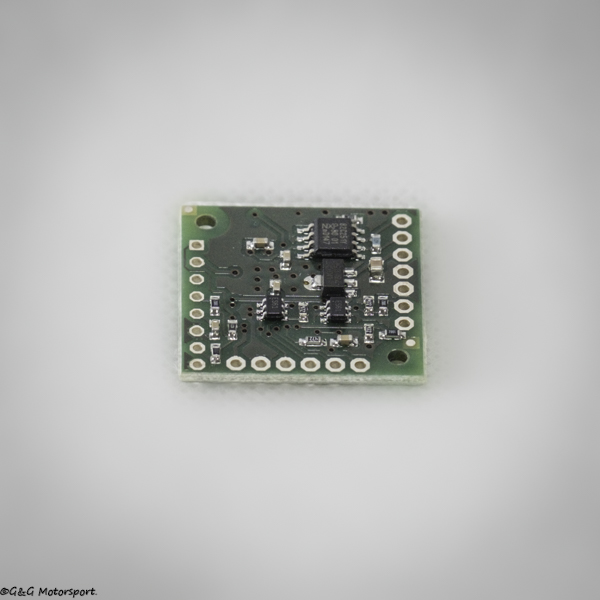

The HP8451 is CAN expansion PCB measuring only 25mm x 25mm. It has 6 analogue input channels that can also be set up to receive 8 digital switched inputs. These inputs are then broadcast to the CAN network.
10-16v Supply
4x 0-5v 10 bit (1023 steps)
2 x 0-15v 10 bit 1023 steps)
1 mBit or 500 kBit
The PCB can be configured to various differing modes, speeds & addresses by sending simple CAN messages to the device. For more detailed information please download the data sheet and instruction manual.
